Used MTU8V396 Generator Set, Power: 567KW, Speed: 1500RPM

HOME / Generator Set

⋅ In stock MTU8V396 Generator Set:

Engine Type :MTU 8V396
Series :single cylinder displacement 3.96L
Description :Running hours: (8000 h)
Power :567KW
Speed :1500RPM
Condition :Used
Manufacturer :Original

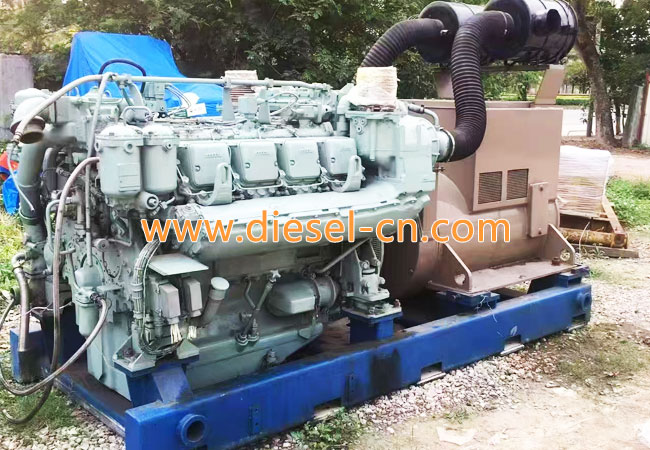

MTU 396 Generator Set

⋅ MTU 8V 396 is a classic V-type 8-cylinder high-speed diesel engine developed and produced by MTU Germany (a subsidiary of Rolls-Royce Power Systems), belonging to the 396 series. It is renowned for its high power density, strong reliability and excellent durability, and is widely used in ships, military industry, heavy machinery and power generation fields.

Key Specifications:

Type: 4-stroke, V8 (90°), direct injection, water-cooled, turbocharged & intercooled
Bore × Stroke: 165 mm × 185 mm
Displacement per cylinder: 3.96 L (origin of series name)
Total displacement: 31.6 L
Compression ratio: 14.5:1
Power generation / Auxiliary machinery：约 440–700 kW（1500 rpm）
Marine / Main Engine：680–1000 kW（1800–1900 rpm）
Power range (typical):
Gen-set/auxiliary: ~440–700 kW (1500 rpm)
Marine/main propulsion: 680–1000 kW (1800–1900 rpm)
Maximum rotational speed：1800–2100 rpm
Max. speed: 1800–2100 rpm
Weight ：about 2500 kg
Dry weight: approx. 2500 kg
Starting: Electric (air start optional)
Used MTU8V396 Generator Set
