700292008400 WASHER TAB LOCKING 8.4 ST52-3 03

700292008400 WASHER TAB LOCKING 8.4 ST52-3 03

Genuine Original MTU Diesel Engine Spare Parts
Engine Model: MTU163, ZR170/072
Unit Weight (kg): 0.001
Condition: New
place of origin: DE
Packing: carton box

Description

700292008400 SUPERSEDED PART AND EFFECTIVE DATE:

New Part Number	Superseded Part Number	Seq no	Hierarchie	Valid From Date
700292008400	28369940032/0	0001	Superseded
700292008400	000463008400	0002	Superseded	1991/9/1
700292008400	000463008402	0003	Superseded	1991/10/1
700292008400	700292008400	0004	New	1991/11/1

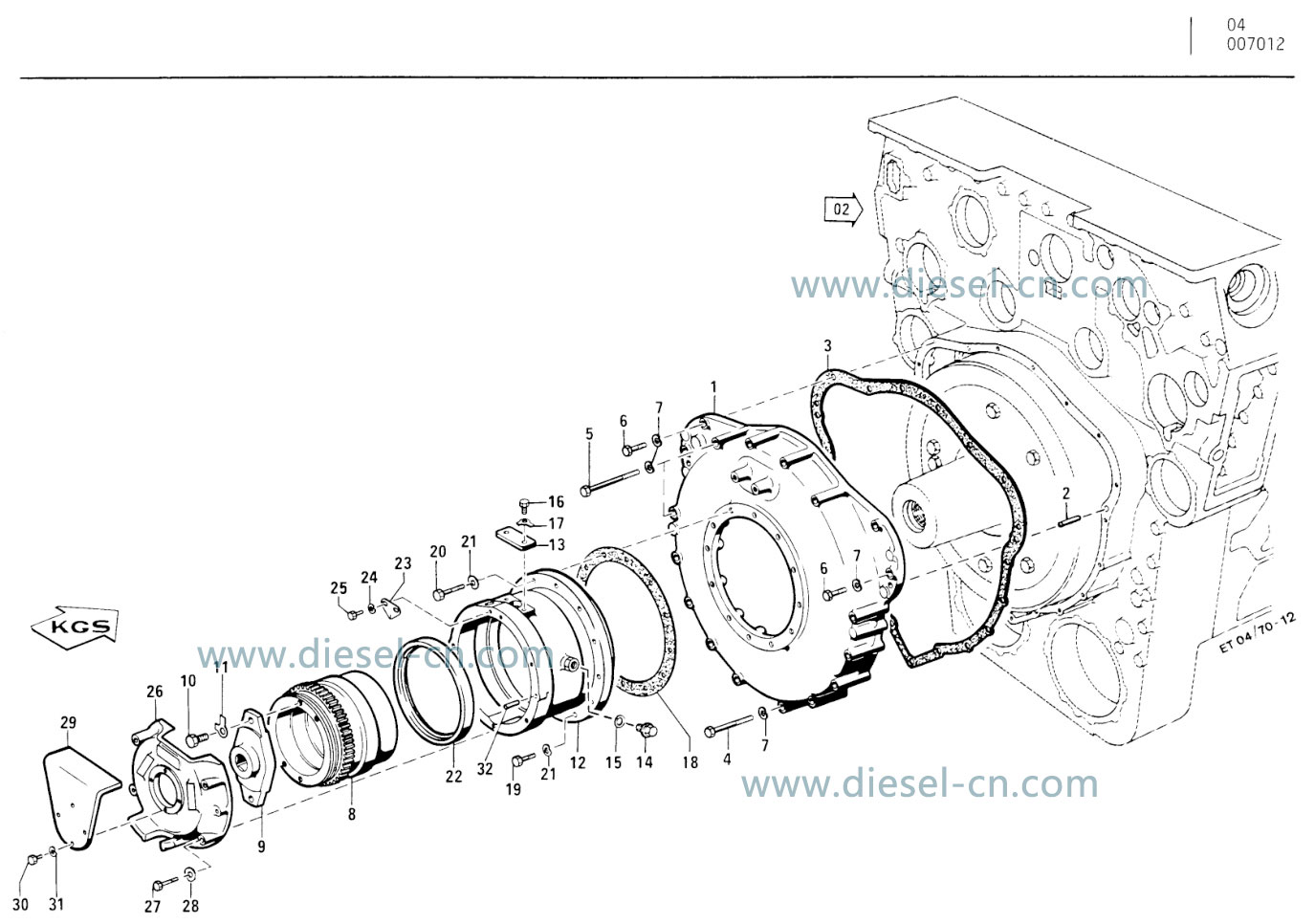

Other components :

Pos.	C/N	Description	Order No.	Qty	U/M	Dimension
1	01	END COVER	5840151030	001	EA
2	02	DOWEL PIN	000007010110	002	EA	10 M6 X 32
3	03	GASKET	5801870980	001	EA
4	04	SCREW	000931010292	012	EA	M 10 X110
5	05	SCREW	000931010158	003	EA	M 10 X115
6	06	SCREW	000931010054	005	EA	M 10 X 40
7	07	SPRING WASHER	000137010202	019	EA	B 10
8	08	PULSE GENERATING RI	5840640105	001	EA
9	09	FLANGE	5800640665	001	EA
10	10	SCREW	000933016009	002	EA	M 16 X 35
11	11	TAB WASHER	700292017000	002	EA	17
12	12	HOUSING	5800602030	001	EA
13	13	COVER	5840640041	001	EA
14	14	PLUG	000910012000	001	EA	M 12 X 1,5
15	15	SEALING RING	007603012111	001	EA	A 12 X 15,5
16	16	SCREW	000933008028	002	EA	M 8 X 18
17	17	TAB WASHER	700292008400	002	EA	8,4
18	18	GASKET	5800152180	001	EA
19	19	SCREW	000931010054	004	EA	M 10 X 40
20	20	SCREW	000931010221	008	EA	M 10 X 50
21	21	SPRING WASHER	000137010202	012	EA	B 10
22	22	SHAFT SEAL	0129977347	001	EA
23	23	TIMING POINTER	5800640092	001	EA
24	24	SPRING WASHER	000137008203	002	EA	B 8
25	25	SCREW	000933008214	002	EA	M 8 X 16
26	26	COVER	5840102235	001	EA
27	27	SCREW	000931008241	005	EA	M 8 X 75
28	28	SPRING WASHER	000137008203	005	EA	B 8
29	29	COVER	5800640941	001	EA
30	30	SCREW	000933008214	004	EA	M 8 X 16
Pos.	C/N	Description	Order No.	Qty	U/M	Dimension
31	31	WASHER	000125008427	004	EA	A 8,4
32	32	DOWEL PIN	000007010119	002	EA	10 M6 X 36
