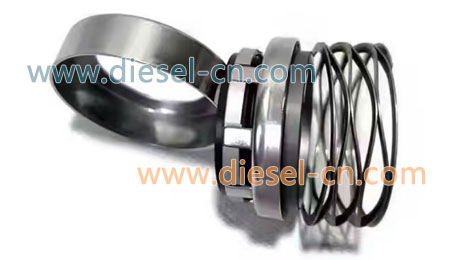

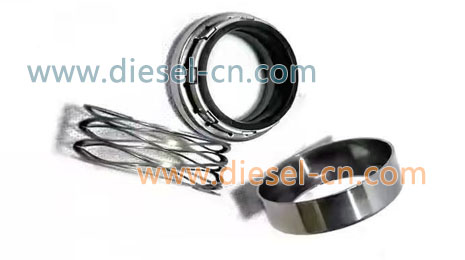

X00026765 ROTARY SEAL
Genuine Original MTU Diesel Engine Spare Parts engine model: MTU4000 weight (g):74.0 Condition: New Applicable Industries: Manufacturing Plant place of origin: Germany video outgoing-inspection: Provided Packing: carton box

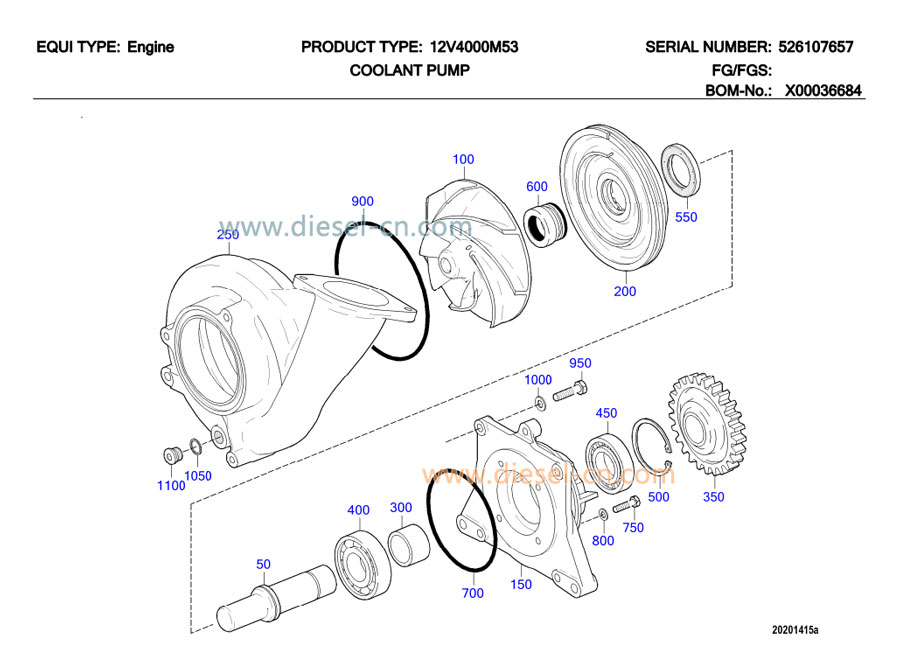

– PRODUCT TYPE: 12V4000M53, COOLANT PUMP , Parts List :
| POS. | PART NO. | DESIGNATION | QTY. | UNITS | WEIGHT | MEASUREMENT | STANDARD |
| 50 | 5272010805 | SHAFT WTR PMP HI TEMP CLG CIRCUIT | 1 | pc | 1,699 kg | ||
| 100 | X00034674 | IMPELLER | 1 | pc | 3,070 kg | ||
| 150 | X00039620 | BEARING HOUSING | 1 | pc | 7,750 kg | ||
| 200 | X00036678 | SEAL CARRIER | 1 | pc | 4,000 kg | ||
| 250 | X00034669 | SPIRAL HOUSING HT COOLANT CIRCUIT | 1 | pc | 8,000 kg | ||
| 300 | 5272010153 | SPACER SLEEVE | 1 | pc | 172,800 g | ||
| 350 | X00041743 | GEAR | 1 | pc | 1,700 kg | ||
| 400 | 200628103006 | BEARING ANGULAR CONTACT ROLLER | 1 | pc | 750,000 g | QJ308 | DIN628 |
| 450 | 705100502035 | BEARING CYLINDRICAL ROLLER | 1 | PC | 623,000 g | NU208 | DIN5412 |
| 500 | 472080000 | RING SNAP | 1 | pc | 22,000 g | 80 x2,5 | DIN472 |
| 550 | 700386050002 | SEAL OIL | 1 | pc | 30,800 g | A50 X 72 X8 | MMN386 |
| 600 | X00026765 | ROTARY SEAL | 1 | pc | 74,000g | ||
| 700 | 700429135000 | O-RING | 1 | pC | 18,600 g | 135X5 | MMN429 |
| 750 | 931008241 | HEX SCREW | 4 | pc | 31,700 g | M 8X75 | DIN931 |
| 800 | 125008427 | WASHER | 4 | PC | 1,500 g | A 8,4 | DIN125 |
| 900 | 700429185002 | O-RING | 1 | pc | 25,200 g | 185 X5 | MMN429 |
| 950 | 933010093 | HEX SCREW | 4 | 28,700 g | M 10 X35 | DIN933 | |
| 1000 | 125010524 | WASHER | 4 | pc | 3,100 g | A 10,5 | DIN125 |
| 1050 | 7603018101 | COPPER SEALING RING | 1 | pc | 1,300 g | A18X22 | DIN7603 |
| 1100 | 908018002 | PLUG | 1 | pc | 0,029 kg | M 18 X 1,5 | DIN908 |
