GASKET 5761870180
Genuine Original MTU Diesel Engine Spare Parts engine model: MTU595 weight (kg):0.002 Condition: New place of origin: DE Packing: carton box
– Other components

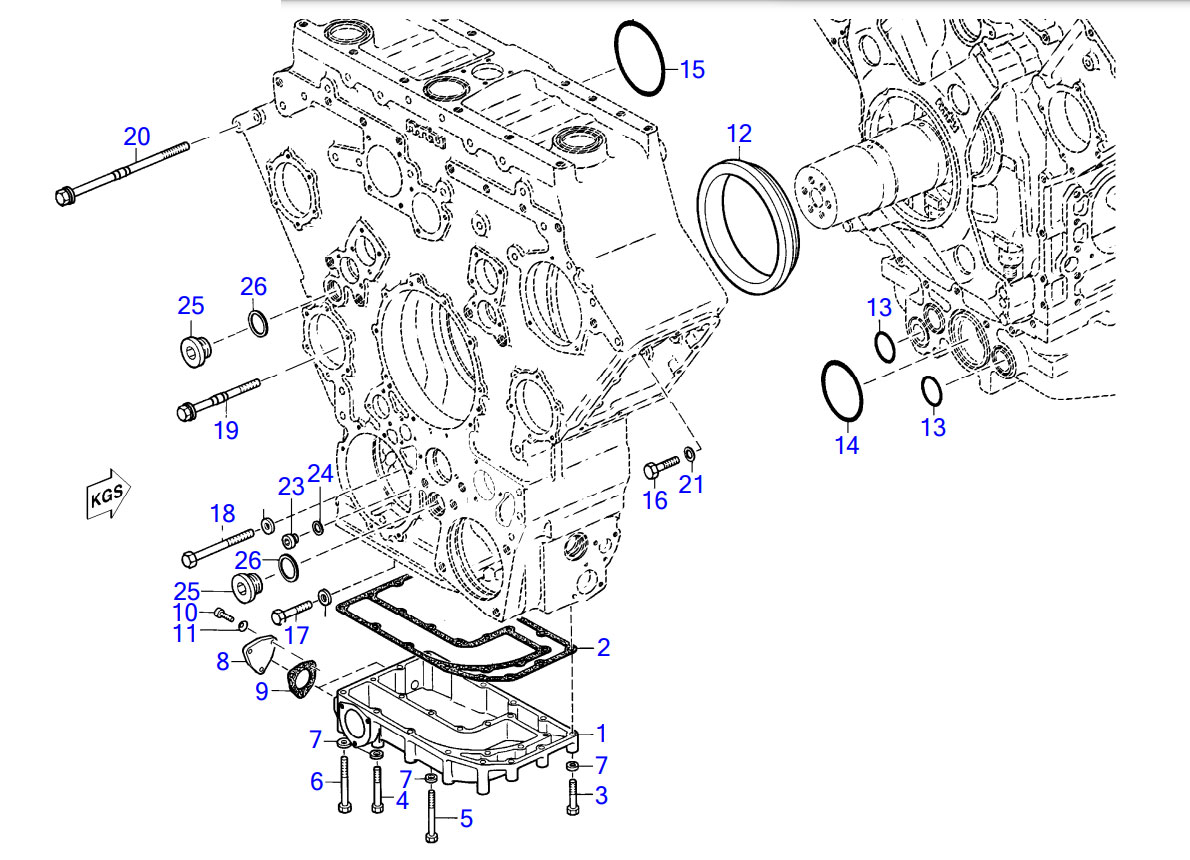

| POS. | PART NO. | DESIGNATION | QTY. | UNITS | MEASUREMENT |
| 01 | 5760100135 | END COVER | 1 | EA | |
| 02 | 5730150280 | GASKET | 1 | EA | |
| 03 | 000931010117 | SCREW | 7 | EA | M 10 X70 |
| 04 | 000931010147 | SCREW | 10 | EA | M 10 X100 |
| 05 | 000931010154 | SCREW | 2 | EA | M 10 X110 |
| 06 | 000931010244 | SCREW | 4 | EA | M 10 X120 |
| 07 | 735151010200 | COVER DISC | 23 | EA | B 10,5 |
| 08 | 5769970066 | BLIND FLANGE | 2 | EA | |
| 09 | 5761870180 | GASKET | 2 | EA | |
| 10 | 200933008007 | SCREW | 6 | EA | M8X30 |
| 11 | 000125008427 | COVER DISC | 6 | EA | A 8,4 |
| 12 | 5700150051 | CENTERING RING | 1 | EA | |
| 13 | 700429050002 | O-RING | 3 | EA | 50 X6 |
| 14 | 700429115000 | O-RING | 1 | EA | 115 X6 |
| 15 | 700429158000 | O-RING | 1 | EA | 158X8 |
| 16 | 000931016019 | SCREW | 6 | EA | M 16 X60 |
| 17 | 000931016133 | SCREW | 1 | EA | M 16 X80 |
| 18 | 200931016008 | SCREW | 6 | EA | M 16 X160 |
| 19 | 5760100183 | DRAIN PLUG | 3 | EA | |
| 20 | 5760100083 | DRAIN PLUG | 28 | EA | |
| 21 | 5589900040 | COVER DISC | 13 | EA | |
| 23 | 000908016001 | PLUG | 7 | EA | M 16 X1,5 |
| 24 | 007603016105 | SEALING RING | 7 | EA | A 16 X20 |
| 25 | 000908048004 | PLUG | 3 | EA | M 48X1,5 |
| 26 | 007603048101 | SEALING RING | 3 | EA | A48 X55 |
