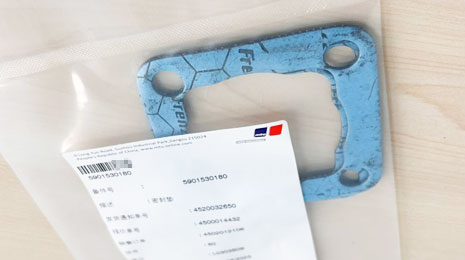

5901530180 – Gasket
Genuine Original MTU Diesel Engine Spare Parts engine model: MTU595 weight (kg):0.008 Condition: New Applicable Industries: Manufacturing Plant place of origin: Germany video outgoing-inspection: Provided Packing: carton box warranty: 6 Months
5901530180 – Gasket SUPERSEDED PART AND EFFECTIVE DATE:
| New Part Number | Superseded Part Number | Seq no | Hierarchie | Valid From Date |
| 5901530180 | 5901530080 | 0001 | Superseded | |
| 5901530180 | 5901530180 | 0002 | New | 1990/11/1 |

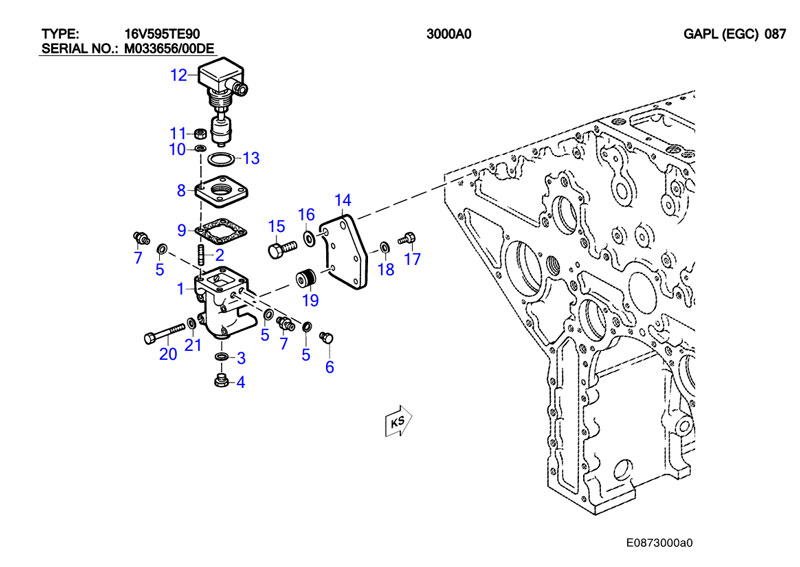

| POS. | PART NO. | DESIGNATION | QTY. | MEASUREMENT | remark |
| 1 | 5800700010 | EXHAUST HOUSING | 1 | ||
| 2 | 000835008086 | STUD | 4 | M 8 X 25 | 835008086 |
| 3 | 007603018101 | SEALING RING | 1 | A 18 X 22 | 7603018101 |
| 4 | 000910018003 | PLUG | 1 | M 18 X 1,5 | 910018003 |
| 5 | 007603012111 | SEALING RING | 4 | A 12 X 15,5 | 7603012111 |
| 6 | 000910012000 | PLUG | 1 | M 12 X 1,5 | 910012000 |
| 7 | 915013006002 | EXHAUST PIPE NECK | 3 | 6 | |
| 8 | 5500780016 | END COVER | 1 | ||
| 9 | 5901530180 | GASKET | 1 | ||
| 10 | 206796008000 | CONICAL SPRING WASHER | 4 | 8 | |
| 11 | 000934008008 | HEX NUT | 4 | M 8 | 934008008 |
| 12 | 0005350132 | LEVEL MONITOR | 1 | 5350132 | |
| 13 | 007603048101 | SEALING RING | 1 | A 48 X 55 | 7603048101 |
| 14 | 5760780041 | ALARM SWITCH | 1 | ||
| 15 | 000933016032 | SCREW | 2 | M 16 X 40 | 933016032 |
| 16 | 000125017014 | COVER DISC | 2 | A 17 | 125017014 |
| 17 | 000933008214 | SCREW | 4 | M 8 X 16 | 933008214 |
| 18 | 000125008427 | COVER DISC | 4 | A 8,4 | 125008427 |
| 19 | 0002375712 | BUFFER | 4 | 2375712 | |
| 20 | 000931008117 | SCREW | 4 | M 8 X 80 | 931008117 |
| 21 | 735151008200 | COVER DISC | 4 | B 8,4 |
