5700150380 – Gasket
Genuine Original MTU Diesel Engine Spare Parts engine model: 16V595TE90 weight (kg): 0.010 Condition: New Applicable Industries: Manufacturing Plant place of origin: Germany video outgoing-inspection: Provided Packing: carton box warranty: 6 Months

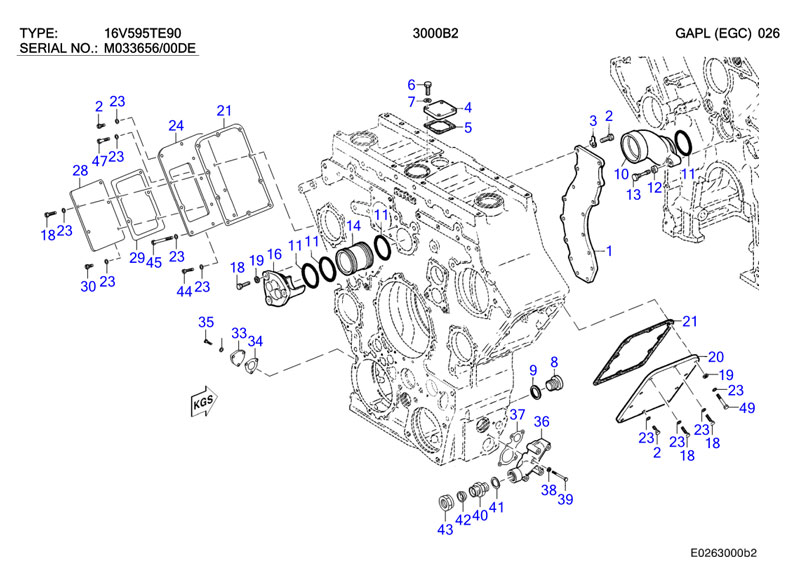

– BOM NO.: 5700150380 , Parts List :
| POS. | PART NO. | DESIGNATION | QTY. | MEASUREMENT |
| 01 | 5700150209 | COVER PLATE | 1 | |
| 02 | 000933010049 | SCREW | 25 | M 10 X 30 |
| 03 | 700292010500 | TAB WASHER | 16 | 10,5 |
| 04 | 5580140233 | COVER | 1 | |
| 05 | 5702030280 | GASKET | 1 | |
| 06 | 000933010058 | SCREW | 4 | M 10 X 35 |
| 07 | 000137010202 | SPRING WASHER | 4 | B 10 |
| 08 | 000908042001 | PLUG | 1 | M 42 X 1,5 |
| 09 | 007603042101 | SEALING RING | 1 | A 42 X 49 |
| 10 | 5761870724 | EXHAUST ELBOW | 1 | |
| 11 | 700429090003 | O-RING | 4 | 90 X 6 |
| 12 | 5501421153 | SPACER SLEEVE | 2 | |
| 13 | 700209010211 | STRESS BOLT | 2 | B M 10 X 65 |
| 14 | 735078080001 | SOCKET PIPE | 1 | 80 X 90 |
| 16 | 5760150530 | COVER | 1 | |
| 18 | 000933010194 | SCREW | 8 | M 10 X 40 |
| 19 | 735151010100 | COVER DISC | 5 | A 10,5 |
| 20 | 5700150430 | COVER | 1 | |
| 21 | 5700150380 | GASKET | 2 | |
| 23 | 000125010524 | COVER DISC | 23 | A 10,5 |
| 24 | 5760100335 | COVER | 1 | |
| 28 | 5760150630 | COVER | 1 | |
| 29 | 5760150180 | GASKET | 1 |
