5410532730 VALVE GUIDE FOR CYLINDER HEAD

5410532730 – VALVE GUIDE FOR CYLINDER HEAD

Genuine Original MTU Diesel Engine Spare Parts
engine model: MTU 16V2000G83, 12V2000G16F
weight (g):44.800
Condition: New
Applicable Industries: Manufacturing Plant
place of origin: Germany
video outgoing-inspection: Provided
Packing: carton box
warranty: 12 Months

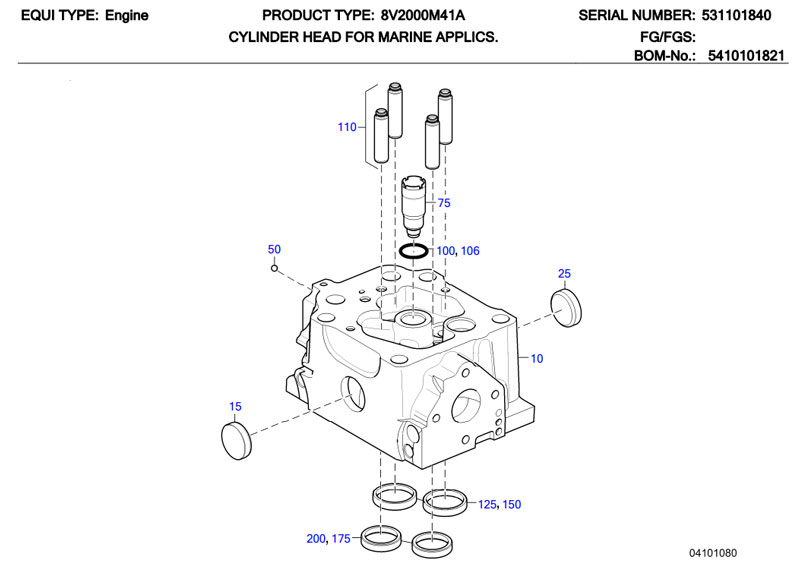

5410532730 8V2000M41A

POS.PART NO.DESIGNATIONQTY.WEIGHTMEASUREMENT
105410161601( EX53604100011 ) CYLINDER HEAD119.94 kg
155419980190( 5419980390 ) END COVER FOR CYLINDER HEAD10.081 kg
250009974320PLUG CUP 40MM DIA123.900 gSIEHE MB TAB 0009975520
505401305500BALL10.600 g5MMKU5V
755410170388PROTECTIVE SLEEVE159.600 gM14 X 1
1005419970345SEALING RING11.800 g25 X 3,7
1065419970745O-RING11.600 g25 X 3,7
1105410532730VALVE GUIDE FOR CYLINDER HEAD444.800 gSIEHE MB TAB 5410532630
1255410532131INSERT VALVE SEAT IN TAKE232.400 gEINLASS STANDARD
1505410532531VALVE SEAT RING INL135.000 gSTUFE +0,4
1755410530532INSERT EXHAUST VALVE SEAT226.900 gSTANDARD
2005410530632VALVE SEAT INSERT128.600 gSTUFE +0,2

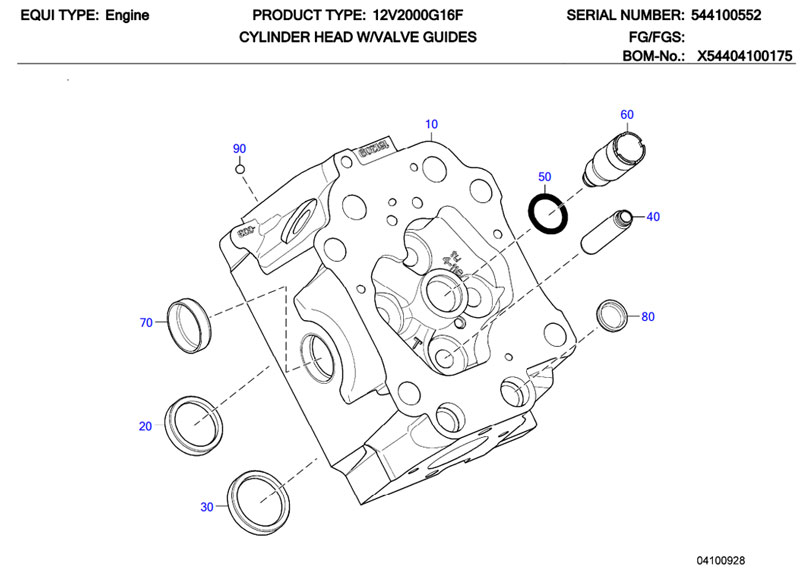

5410532730 12V2000G16F

POS.PART NO.DESIGNATIONQTY.WEIGHTMEASUREMENT
10X54404100174CYLINDER HEAD117.840 kg
20X54404100075VALVE SEAT INSERT INLET241.300 g
30X54404100016VALVE SEAT INSERT EXHAUST230.000 g
405410532730VALVE GUIDE444.800 g
505419970745O-RING11.600 g25 X 3,7
60X54404100138SEALING SLEEVE162.000 g
700009974320BLANKING COVER223.900 g40 X 12
805800160033SEALING CAP211.000 gD24
9005401999012BALL11.100 g6,35G20P2



5410532730 – VALVE GUIDE FOR CYLINDER HEAD SUPERSEDED PART AND EFFECTIVE DATE:

New Part NumberSuperseded Part NumberSeq noHierarchieValid From Date
541053273045705308300001Superseded
5410532730DDE A45705312300002Superseded2009/9/1
541053273045705312300003Superseded2010/10/1
541053273054105312300004Superseded2010/11/1
541053273054105327300005New2010/12/1
