5240530805 – Valve Exhaust
•Genuine Original MTU Diesel Engine Spare Parts engine model: MTU16V4000G03, MTU16V4000G23, MTU16V4000G61, MTU16V 4000M90 weight (kg): 0.342 Condition: New Applicable Industries: Manufacturing Plant place of origin: Germany Packing: carton box
5240530805 – ( Valve Exhaust )

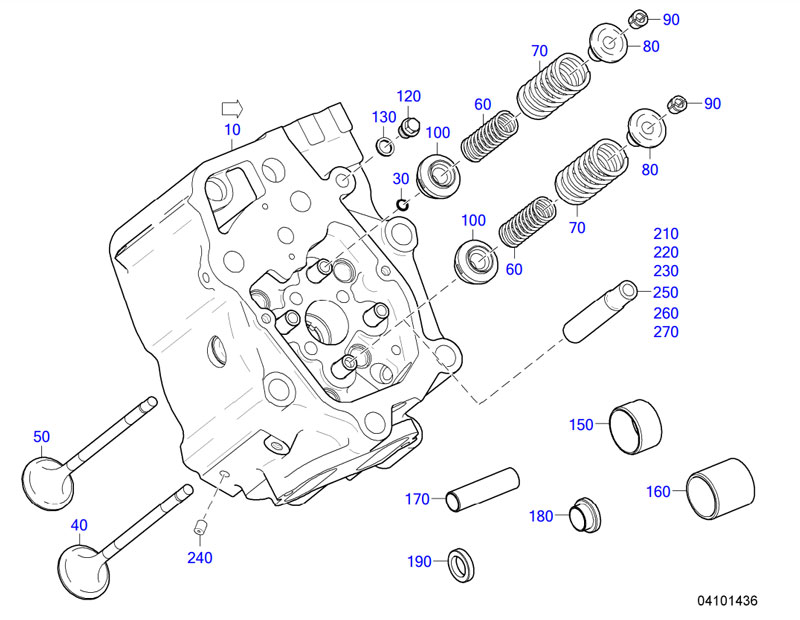

| POS. | PART NO. | DESIGNATION | MODEL/TYPE | QTY. | WEIGHT | MEASUREMENT | STANDARD |
| 10 | X52404100177 | CYLINDER HEAD W/VALVE GUIDES | 1 | 46,588 kg | |||
| 30 | 700429010004 | O-RING | 2 | 0,2 g | 10,78X 1,82 | MMN429 | |
| 40 | X00042197 | INLET VALVE | 2 | 335,8 g | |||
| 50 | 5240530805 | EXHAUST VALVE | 2 | 340,8 g | |||
| 60 | 5240530122 | VALVE SPRING INNER | 4000 | 4 | 60,5 g | ||
| 70 | 5240530120 | VALVE SPRING OUTER | 4000 | 4 | 154,9 g | ||
| 80 | 5240530125 | RETAINER VALVE SPRIN G | 4 | 33,8 g | |||
| 90 | 0000530926 | VALVE KEEPER WEDGE | 8 | 1,6 g | |||
| 100 | 0000534335 | VALVE ROTATOR | 4 | 108,7 g | |||
| 120 | 000910014004 | PLUG | 1 | 25 g | M 14 X 1,5 | DIN910 | |
| 130 | 007603014102 | SEAL RING | 1 | 1 g | A 14 X 18 | DIN7603 | |
| 150 | 5240160350 | BUSHING | 4000 | 1 | 79 g | ||
| 160 | 5240160450 | BUSHING | 4000 | 1 | 139 g | ||
| 170 | 5240160550 | BUSHING | 1 | 66 g | |||
| 180 | 5240160650 | BUSHING | 4000 | 1 | 32 g | ||
| 190 | 5240160276 | WASHER | 4000 | 1 | 25,3 g | ||
| 210 | X52404200008 | VALVE GUIDE INLET AND EXHAUST | STUFE 0 – KENNZ. 1 RILLE | 1 | 120 g | FERTIG BEARBEITET, 19.00 R6 H7 | |
| 220 | X52404200009 | VALVE GUIDE INLET AND EXHAUST | STUFE 1 – KENNZ. 2 RILLEN | 1 | 0,12 kg | FERTIG BEARBEITET, 19.10 R6 H7 | |
| 230 | X52404200010 | VALVE GUIDE INLET AND EXHAUST | STUFE 2 – KENNZ. 3 RILLEN | 1 | 0,12 kg | FERTIG BEARBEITET, 19.30 R6 H7 | |
| 240 | PLUG | 1 | 14 g | A10 | MTN5073 | ||
| 250 | 5240530830 | VALVE GUIDE | STUFE 0 – KENNZ. 1 RILLE | 1 | 130 g | FERTIG BEARBEITET, 19.00 R6 H7 | |
| 260 | 5240530930 | VALVE GUIDE | STUFE 1 – KENNZ. 2 RILLEN | 1 | 130 g | FERTIG BEARBEITET, 19.10 R6 H7 | |
| 270 | 5240530930 | VALVE GUIDE | STUFE 1 – KENNZ. 2 RILLEN | 1 | 130 g | FERTIG BEARBEITET, 19.10 R6 H7 |
