MTU Filter
Choosing genuine MTU engine parts provided by reliable suppliers can guarantee the smooth operation of engines.
Classification of MTU:
MTU air filter Model List
| PART NUMBER | ENGINE TYPE |
|---|---|
| 0180943002 | MTU 20V1163TB73L |
| 0170942502 | MTU 20V538 |
| 8200900001 | MTU163 and 183 |
| X00041432 | MTU6H1800R83 |
| 0150940702 | MTU 16V396TB84 |
| 180943002 | MTU12V 595TE90 |
| 0170942502 | MTU 183 and 4000 |
| 0000948204 | MTU 8V 183TE |
| 0180945802 | MTU 12V 4000G61 |
| 0170941202 | MTU12V 1600G70S |
MTU Fuel filter Model List
| PARTS NUMBER | ENGINE TYPE |
|---|---|
| 0020922901/87 | MTU16V4000R41 |
| 0000921705 | MTU12V396TB93 |
| 0004771202 | MTU16V538TB93 |
| 0020922101 | MTU20V 8000 M70 |
| 0000921705 | MTU16V538TB91 |
| 5410900151 | BENZOM502 |
| 536B03701/1 | MTU20V538 |
| 0010924801 | MTU12V493 |
| 0000921705 | MTU 20V 1163 TB93 |
| XP53508300002 | MTU12V2000M93 |
MTU Oil filter Model List
| PARTS NUMBER | ENGINE TYPE |
|---|---|
| 5241840101 | MTU 18V2000 G62 |
| 0031845301 | MTU 16V4000M40 |
| 5501800016 | MTU 8V396TB83 |
| 0001801010 | MTU 12V183 |
| 3641800009 | MTU 6R099AZ51 |
| X57518300024 | MTU12V 1600G70S |
| 0031841401 | MTU16V538TB91 |
| 0001802909 | BENZ OM502 |
| F6784953 | MTU20V956TB33 |
| 8692800005 | MTU6H1800R83 |
MTU FILTER LIST: <DOWNLOAD>
MTU filter Main Types

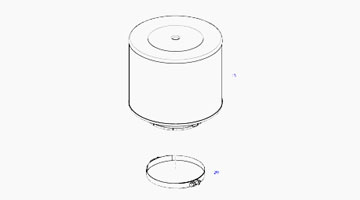

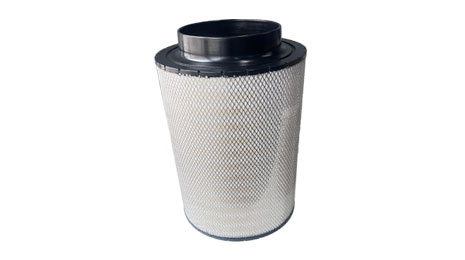

MTU Air Filter
Function: Remove dust, sand, and other particles from the air entering the engine to protect cylinders and valves.
Types: Dry (paper element, common in passenger cars), wet (oil-impregnated element, suitable for dusty environments), combined (multi-stage filtration, preferred for construction machinery).

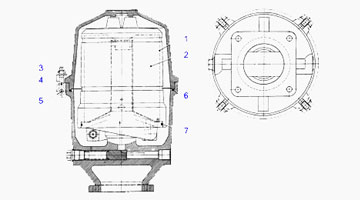

MTU OIL FILTER
Function: Eliminate metal shavings, sludge, and carbon deposits from engine oil to keep the lubrication system clean.
Types: Spin-on (replaceable as a whole, convenient and efficient), cartridge (replace only the element, used in some commercial vehicles), integrated (built into the engine for long-life design).

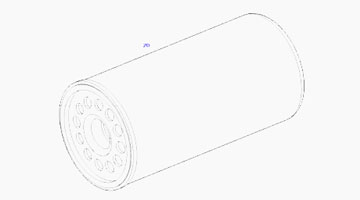

MTU Fuel Filter
Function: Filter impurities and water from fuel to protect the fuel injection system (e.g., fuel injectors, fuel pumps).
Types: Gasoline filter (external or internal, replaced regularly), diesel filter (often with water separator, suitable for high-sulfur fuel).
The Replacement Cycle of MTU filters
For different models of mtu engines and different operating environments, the replacement cycle and inspection requirements of the filters May vary. Specifically, you should refer to the engine operation manual and the manufacturer’s suggestions.
Air Filter: Generally, it should be replaced after the engine has run for 500 – 1000 hours. If the operating environment is dusty, the replacement cycle should be appropriately shortened.
Oil Filter: It is usually replaced every 200 – 300 hours of operation or according to the quality condition of the engine oil, whichever comes first.
Fuel Filter: It is recommended to replace it every 500 – 800 hours of operation. If the fuel quality is not good, it needs to be replaced more frequently.
MTU Filter Inspection Items
Appearance of the Filter: Check the filter housing for any damage, deformation, or leakage every time during maintenance.
Sealing Performance: Examine whether the sealing ring of the filter is in good condition to ensure a good seal and prevent unfiltered air, oil, or fuel from entering the system.
Clogging Condition: You can judge it by the clogging indicator on the filter. If the indicator shows clogging, it should be replaced in a timely manner. You can also indirectly determine whether the filter is clogged by observing the operating condition of the engine, such as a decrease in power or an increase in fuel consumption.
One-stop shopping for MTU parts
Fast delivery and high-quality service
Thanks to our high-quality supply system, we can respond quickly and provide you with genuine MTU filters. We welcome global traders, retailers, and repair shops—whether you are in repair workshops, generator sets, mining sites, agriculture, industry, residential, transportation, defense, commercial, or marine sectors (shipyards, maritime, cruise ships, cargo ships, workboats, ferries, passenger vessels, submarines, etc.)—we invite you to contact us for inquiries.
