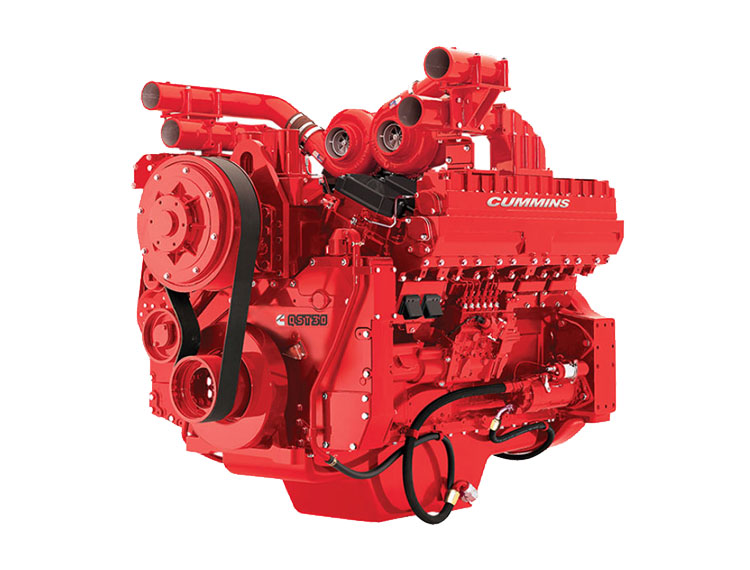

CUMMINS QST30 Parts

Dependability makes the QST30 the right engine choice.

A sophisticated electronic control system and extended maintenance features help keep fuel economy up and operating costs down. So whether you are spec’ing new equipment or repowering an existing unit, the QST30 is the best way to improve performance, productivity and profits.

CUMMINS QST30 parts List

Cummins QST30, as a benchmark power core in the heavy-duty field, its authentic original parts system is the key support for ensuring the long-term stable operation of the engine. From core components such as Bosch high-pressure fuel pumps and Holset HX60 turbochargers, to powertrain components like pistons, cylinder liners, and valves, and further to precision parts including Electronic Control Modules (ECM) and gaskets, every authentic CUMMINS QST30 part adheres to Cummins’ globally unified technical specifications and quality standards. Undergoing rigorous material selection and repeated testing, they ensure perfect adaptation to the engine, maintaining exceptional durability and reliability even under extreme working conditions in mining, oil and gas, railway, and other sectors.

CUMMINS ENGINES

No.	Part Number	Description	Supply part number
1	3804718	KIT,UPPER ENGINE GASKET	3804718
2	3804938	KIT,LOWER ENGINE GASKET	3804938
3	3094716	BUSHING	6210-21-1491
4	3094526	SCREW,TWELVE POINT CAP	3094526
5	3092938	SCREW,FRACTURE RESISTANT	6215-31-3310
6	3092939	WASHER,PLAIN	6215-31-3330
7	3800363	KIT,ENGINE PISTON	3800363
8	3092508	SPRING,VALVE	6210-41-4430
9	3092509	SPRING,VALVE	6210-41-4440
10	3092510	RETAINER,VALVE SPRING	6210-41-4510
11	3092511	GUIDE,VALVE SPRING	3092511
12	3092608	SEAL,VALVE STEM	6210-41-4530
13	3804866	KIT,INTAKE VALVE	3804866
14	3804867	KIT,EXHAUST VALVE	3804867
15	3092461	INSERT,VALVE	6210-11-1321
16	3094159	INSERT,VALVE	6216-11-1330
17	3092014	GUIDE,VALVE STEM	6212-16-1440
18	3092507	ROD,PUSH	6210-41-3120
19	4068730	SEAL,O RING	4068730
20	3092254	CLAMP,SPRING HOSE	3092254
21	3092255	HOSE,FLEXIBLE	3092255
22	3093155	SEAL,O RING	3093155
23	3918192	WASHER,SEALING	C3918192
24	4027880	KIT,TURBOCHARGER REPAIR	4027880
25	3093778	WASHER,PLAIN	3093778
26	3092114	THERMOSTAT	600-421-6630
27	4067809	SCREW,RKR LEVER ADJUSTING	6150-41-5541
28	4067806	SCREW,CROSSHEAD ADJUSTING	6210-41-5641
29	3092408	NUT,REGULAR HEXAGON	6162-43-5630
30	4068308	CORE,COOLER	6212-61-2112
31	4068309	SEAL,O RING	6150-61-2520
32	3093598	SCREW,BANJO CONNECTOR	3093598
33	3092299	SCREW,BANJO CONNECTOR	3092299
34	3021420	SOLENOID	3021420-20
35	3087969	HOSE,FLEXIBLE	6216-81-4840
36	3679139	SEAL,O RING	G3679139
37	3922794	SEAL,O RING	G3922794
38	3678912	SEAL,O RING	G3678912
39	4067896	TUBE,FUEL DRAIN	4067896
40	4295598	TUBE,FUEL DRAIN	4295598
41	4095189	SEPARATOR,FUEL WATER	FS1006
42	3092994	VALVE,BYPASS	6215-51-1702
43	3100308	RESISTOR,CORROSION	3100308-29
44	3092494	BREATHER,CRANKCASE	3092494
45	3093725	SEAL,O RING	07000-12016NF
46	3633974	CLAMP,T BOLT	3063809-20
47	3092283	WASHER,PLAIN	3092283
48	3094521	SCREW,TWELVE POINT CAP	3094521
49	3094522	SCREW,TWELVE POINT CAP	3094522
50	4975617	PUMP,FUEL TRANSFER	5593523
51	3093879	WASHER,PLAIN	3093879
52	203518	WASHER,PLAIN	203518X
53	3094288	DIPSTICK	3094288
54	4295584	HOSE,FLEXIBLE	4295584
55	4975704	HOSE,FLEXIBLE	4975704
56	4975712	HOSE,FLEXIBLE	4975712
57	4975713	HOSE,FLEXIBLE	4975713
58	4068654	HOSE,PLAIN	4068654
59	107981	CAP,FILLER	107981-20
60	3093817	SEAL,O RING	07000-73038
61	3092538	SEAL,O RING	6210-61-2520
62	3093813	SEAL,O RING	07000-73022
63	3093811	SEAL,O RING	07000-72018
64	3201585	SEAL,O RING	3201585
65	3093808	SEAL,O RING	6150-61-2520
66	3094129	SEAL,O RING	3094129
67	3094818	SEAL,O RING	3094818
68	3094339	SEAL,O RING	3094339
69	3329536	SEAL,O RING	3329536
70	108172	SEAL,O RING	108172
71	3630740	SEAL,O RING	3630740
72	155789	HOSE,PLAIN	155789-20
73	3092253	CLAMP,SPRING HOSE	3092253
74	3092333	HOSE,PLAIN	3092333
75	4920417	CLAMP,HOSE	4920417X
76	4309331	LINER,CYLINDER	6211-22-2220
77	4331005	FILTER,LUBRICATING OIL	LF14000NN
78	4990915	SCREW,BANJO CONNECTOR	4990915
79	3093963	SEAL,O RING	3093963
80	3092262	SEAL,O RING	07000-12110
81	3092200	SEAL,O RING	3092200
82	3092399	SEAL,THERMOSTAT	6162-13-6440
83	3093629	TUBE,INJECTOR FUEL SUPPLY	6211-11-3131
84	3092580	NUT,REGULAR HEXAGON	6211-71-9770
85	3016787	SEAL,OIL	3016792
86	3093372	TUBE,INJECTOR FUEL SUPPLY	3093372
87	3093374	TUBE,INJECTOR FUEL SUPPLY	3093374
88	3093375	TUBE,INJECTOR FUEL SUPPLY	3093375
89	3093683	TUBE,INJECTOR FUEL SUPPLY	3093683
90	3093365	TUBE,INJECTOR FUEL SUPPLY	3093365
91	3093684	TUBE,INJECTOR FUEL SUPPLY	3093684
92	3093367	TUBE,INJECTOR FUEL SUPPLY	3093367
93	3093368	TUBE,INJECTOR FUEL SUPPLY	3093368
94	4067802	TUBE,INJECTOR FUEL SUPPLY	4067802
95	3093370	TUBE,INJECTOR FUEL SUPPLY	3093370
96	3093685	TUBE,INJECTOR FUEL SUPPLY	3093685
97	4924925	SWITCH,PRESSURE	4924925
98	3093624	CLAMP,TUBE	3093624
99	3092625	CLAMP,TUBE	3092625
100	3092626	CLAMP,TUBE	3092626
101	3094971	HOSE,FLEXIBLE	3094971
102	3094972	HOSE,FLEXIBLE	3094972
103	4975719	HOSE,FLEXIBLE	4975719
104	4975721	HOSE,FLEXIBLE	4975721
105	4975670	TUBE,FUEL SUPPLY	4975670
106	3092541	WASHER,INJECTOR CLAMPING	3092541
107	3093373	TUBE,INJECTOR FUEL SUPPLY	3093373
108	3092707	TUBE,VENT	6215-11-6531
109	3092709	TUBE,VENT	3092709
110	3092711	TUBE,VENT	3092711
111	4068581	TUBE,FUEL DRAIN	4068581
112	3093559	ADAPTER,SPLINE	3093559
113	3089585	ELBOW,MALE UNION	3089585
114	3331872	ELBOW,MALE UNION	3331872-20
115	3094343	NUT,REGULAR HEXAGON
116	3332136	UNION,MALE	3332136
117	3090400	UNION,MALE	3090400X
118	3092131	TUBE,FUEL DRAIN	3092131
119	3092130	TUBE,FUEL SUPPLY	3092130
120	4975723	HOSE,FLEXIBLE	4975723
121	3093434	TUBE,FUEL DRAIN
122	4975720	HOSE,FLEXIBLE	4975720
123	4975710	HOSE,FLEXIBLE	4975710
124	4384743	HARNESS,WIRING	4384743
125	4359572	SENSOR,PRESSURE	5698567

Performance

The QST30 delivers more power and more torque in a smaller package than competitive diesels. Known for its flexible calibrations, excellent power density, economical operation and exceptional uptime, the QST30 sets the standard for rugged dependable power.

The QST30 is an excellent choice to replace a number of engines – including some of our own. It has significantly more power, as much as 50% longer life-to-rebuild and better fuel economy than the Cummins V28, even though it is virtually the same size. Repowers are available with air-to-air cooling (for equipment which has to meet emissions standards) or jacket-water aftercooling (for non-emissionized equipment).

If you have an older competitive engine, you’ll find that replacing it with the QST30 gives you up to 25% more power and torque, better fuel economy and longer service intervals, for increased productivity with lower costs. Every Well.

Warranty

– The best warranty in the business, which includes full coverage for unlimited hours during the first year, extending through two years or 2,000 cumulative hours (whichever comes first). The base warranty also includes 3-year/10,000-hour standard protection on major components. Extended warranties are available as well.
